Model/Unit/Item | Unit | FFS-50 | FFS-100 | FFS-150 | FFS-200 | |
---|---|---|---|---|---|---|
Basic parameter | Input power | V/P/Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz |
Refrigerant | N/A | R404A | R404A | R404A | R404A | |
Storage time | h | 24 | 24 | 24 | 24 | |
Temperature | Ambient temperature | ℃ | 35 | 35 | 35 | 35 |
Condensing temperature | ℃ | 38 | 38 | 38 | 38 | |
Evaporating temperature | ℃ | -28 | -28 | -28 | -28 | |
Inner temperature | ℃ | -18 | -18 | -18 | -18 | |
Power | Total installed power | kw | 13 | 18.9 | 22 | 27 |
Total operating power | kw | 3.9 | 9.1 | 12.4 | 14.3 | |
Operating power of compressor | kw | 3.28 | 8.24 | 11.17 | 12.88 | |
Operating power of cooling tower fan | kw | 0.12 | 0.12 | 0.12 | 0.12 | |
Operating power of cooling water pump | kw | 0.55 | 0.55 | 1.1 | 1.1 | |
Operating power of air cooler | kw | 0.175 | 0.175×3 | 0.175×3 | 0.175×4 | |
Operating power of defrosting | kw | 4.65 | 9.49 | 9.49 | 12.37 | |
Compressor | Refrigerating output | kw | 5.1 | 10.3 | 16.6 | 19.97 |
Operating power | kw | 3.28 | 8.24 | 11.17 | 12.88 | |
Compressor COP/EER | kw/kw | 1.53 | 1.25 | 1.49 | 1.55 | |
Horsepower | hp | 7 | 13 | 15 | 20 | |
Condenser | Cooling way | N/A | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Heat exchange | kw | 10 | 18.54 | 27.8 | 31.9 | |
Cooling water connector dimensions | Inch | 1-1/2'' | 1-1/2'' | 1-1/2'' | 1-1/2'' | |
Air cooler | Qty | set | 1 | 1 | 1 | 1 |
Power of fan | kw | 0.175 | 0.175×3 | 0.175×3 | 0.175×4 | |
Qty of fan | set | 1 | 3 | 3 | 4 | |
Unit | Operating weight | kg | 600 | 650 | 700 | 700 |
Overall dimension | mm | L1200×W750×H600 | L1200×W800×H600 | L1250×W850×H650 | L1300×W900×H700 | |
Ice Storage Room |
Operating power | kg | 1200 | 2500 | 4600 | 5878 |
Overall dimension | m | L3200×W2000×H2800 | L4000×W3000×H2800 | L6000×W3200×H2800 | L6500×W3800×H2800 | |
Theoretical volume | MT | 5 | 10 | 15 | 20 | |
Material of panels | N/A | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | |
Thickness of panels | mm | 150 | 150 | 150 | 150 | |
Storage door dimensions | m | L2000×H1800 | L2500×H1800 | L2500×H1800 | L3000×H1800 |
Model/Unit/Item | Unit | FFS-250 | FFS-300 | FFS-350 | FFS-400 | |
---|---|---|---|---|---|---|
Basic parameter | Input power | V/P/Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz |
Refrigerant | N/A | R404A | R404A | R404A | R404A | |
Storage time | h | 24 | 24 | 24 | 24 | |
Temperature | Ambient temperature | ℃ | 35 | 35 | 35 | 35 |
Condensing temperature | ℃ | 38 | 38 | 38 | 38 | |
Evaporating temperature | ℃ | -28 | -28 | -28 | -28 | |
Inner temperature | ℃ | -18 | -18 | -18 | -18 | |
Power | Total installed power | kw | 38 | 46 | 50 | 55 |
Total operating power | kw | 18.6 | 21 | 24.7 | 28.8 | |
Operating power of compressor | kw | 16.62 | 18.78 | 22.2 | 12.88x2 | |
Operating power of cooling tower fan | kw | 0.18 | 0.18 | 0.55 | 0.55 | |
Operating power of cooling water pump | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
Operating power of air cooler | kw | 0.175×6 | 0.175×8 | 0.175×8 | 0.175×12 | |
Operating power of defrosting | kw | 9.49×2 | 12.37×2 | 12.37×2 | 12.37×2 | |
Compressor | Refrigerating output | kw | 25.7 | 29 | 34.5 | 20.6×2 |
Operating power | kw | 16.62 | 18.78 | 22.2 | 12.88×2 | |
Compressor COP/EER | kw/kw | 1.55 | 1.54 | 1.55 | 1.6 | |
Horsepower | hp | 20 | 30 | 40 | 20×2 | |
Condenser | Cooling way | N/A | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Heat exchange | kw | 41.2 | 46.5 | 55.1 | 63.8 | |
Cooling water connector dimensions | Inch | 2'' | 2'' | 2'' | 2'' | |
Air cooler | Qty | set | 2 | 2 | 2 | 3 |
Power of fan | kw | 0.175×6 | 0.175×8 | 0.175×8 | 0.175×12 | |
Qty of fan | set | 6 | 8 | 8 | 12 | |
Unit | Operating weight | kg | 900 | 920 | 980 | 1120 |
Overall dimension | mm | L1350×W1000×H780 | L1380×W1100×H820 | L1400×W1150×H860 | L1500×W1200×H1000 | |
Ice Storage Room |
Operating power | kg | 6578 | 7000 | 7500 | 7800 |
Overall dimension | m | L7500×W4000×H2800 | L8000×W4500×H2800 | L8500×W4800×H2800 | L9000×W5000×H2800 | |
Theoretical volume | MT | 25 | 30 | 35 | 40 | |
Material of panels | N/A | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | |
Thickness of panels | mm | 150 | 150 | 150 | 150 | |
Storage door dimensions | m | L3000×H1800 | L3200×H1800 | L3200×H1800 | L3500×H1800 |
Model/Unit/Item | Unit | FFS-50 | FFS-100 | FFS-150 | FFS-200 | |
---|---|---|---|---|---|---|
Basic parameter | Input power | V/P/Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz |
Refrigerant | N/A | R404A | R404A | R404A | R404A | |
Quick-freeze Time | h | 6 | 6 | 6 | 6 | |
Temperature | Ambient temperature | ℃ | 35 | 35 | 35 | 35 |
Condensing temperature | ℃ | 38 | 38 | 38 | 38 | |
Evaporating temperature | ℃ | -38 | -38 | -38 | -38 | |
Inner temperature | ℃ | -18 | -18 | -18 | -18 | |
Power | Total installed power | kw | 26 | 37.5 | 40.5 | 51 |
Total operating power | kw | 13.6 | 17.9 | 21 | 26 | |
Operating power of compressor | kw | 12.14 | 16.18 | 19.35 | 24.3 | |
Operating power of cooling tower fan | kw | 0.18 | 0.18 | 0.18 | 0.18 | |
Operating power of cooling water pump | kw | 1.1 | 1.1 | 1.1 | 1.1 | |
Operating power of air cooler | kw | 0.175×4 | 0.175×6 | 0.175×6 | 0.175×8 | |
Operating power of defrosting | kw | 12.37 | 9.49×2 | 9.49×2 | 12.37×2 | |
Compressor | Refrigerating output | kw | 16.22 | 21.4 | 25.4 | 32.4 |
Operating power | kw | 12.14 | 16.18 | 19.35 | 24.3 | |
Compressor COP/EER | kw/kw | 1.34 | 1.32 | 1.31 | 1.34 | |
Horsepower | hp | 16 | 25 | 30 | 32 | |
Condenser | Cooling way | N/A | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Heat exchange | kw | 28.4 | 37.6 | 44.7 | 56.7 | |
Cooling water connector dimensions | Inch | 2'' | 2'' | 2'' | 2'' | |
Air cooler | Qty | set | 1 | 2 | 2 | 2 |
Power of fan | kw | 0.175×4 | 0.175×6 | 0.175×6 | 0.175×8 | |
Qty of fan | set | 4 | 6 | 6 | 8 | |
Unit | Operating weight | kg | 1200 | 1250 | 1380 | 1420 |
Overall dimension | mm | L1100×W800×H750 | L1150×820×H750 | L1150×820×H750 | L1180×850×H780 | |
Ice Storage Room |
Operating power | kg | 1500 | 2500 | 4600 | 4900 |
Overall dimension | m | L3200×W2000×H2800 | L4000×W3000×H2800 | L6000×W3200×H2800 | L6500×W3800×H2800 | |
Theoretical volume | MT | 5 | 10 | 15 | 20 | |
Daily Throughput capacity | MT | 0.5 | 1 | 1.5 | 2 | |
Material of panels | N/A | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | |
Thickness of panels | mm | 150 | 150 | 150 | 150 | |
Storage door dimensions | m | L2000×H1800 | L2200×H1800 | L2200×H1800 | L2500×H1800 |
Model/Unit/Item | Unit | FCS-250 | FCS-300 | FFS-350 | FFS-400 | |
---|---|---|---|---|---|---|
Basic parameter | Input power | V/P/Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz |
Refrigerant | N/A | R404A | R404A | R404A | R404A | |
Quick-freeze Time | h | 6 | 6 | 6 | 6 | |
Temperature | Ambient temperature | ℃ | 35 | 35 | 35 | 35 |
Condensing temperature | ℃ | 38 | 38 | 38 | 38 | |
Evaporating temperature | ℃ | -38 | -38 | -38 | -38 | |
Inner temperature | ℃ | -18 | -18 | -18 | -18 | |
Power | Total installed power | kw | 69 | 73 | 73 | 75 |
Total operating power | kw | 31 | 35.5 | 35.5 | 37 | |
Operating power of compressor | kw | 28.2 | 32.4 | 32.4 | 32.4 | |
Operating power of cooling tower fan | kw | 0.55 | 0.55 | 0.55 | 0.75 | |
Operating power of cooling water pump | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
Operating power of air cooler | kw | 0.175×12 | 0.175×12 | 0.175×12 | 0.175×12 | |
Operating power of defrosting | kw | 12.37×3 | 12.37×3 | 12.37×3 | 12.37×3 | |
Compressor | Refrigerating output | kw | 37.5 | 42.8 | 42.8 | 46.3 |
Operating power | kw | 28.2 | 32.4 | 32.4 | 32.4 | |
Compressor COP/EER | kw/kw | 1.33 | 1.32 | 1.32 | 1.43 | |
Horsepower | hp | 40 | 50 | 50 | 50 | |
Condenser | Cooling way | N/A | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Heat exchange | kw | 65.6 | 75.1 | 75.1 | 78.6 | |
Cooling water connector dimensions | Inch | 2'' | 2'' | 2'' | 2-1/2'' | |
Air cooler | Qty | set | 3 | 3 | 3 | 3 |
Power of fan | kw | 0.175×12 | 0.175×12 | 0.175×12 | 0.175×12 | |
Qty of fan | set | 12 | 12 | 12 | 12 | |
Unit | Operating weight | kg | 1450 | 1500 | 1500 | 1620 |
Overall dimension | mm | L1200×900×H800 | L1250×850×H850 | L1250×850×H850 | L1500×1200×H1000 | |
Ice Storage Room |
Operating power | kg | 5200 | 5900 | 6800 | 7500 |
Overall dimension | m | L7000×W4000×H2800 | L8000×W4000×H2800 | L8500×W5000×H2800 | L9000×W5000×H2800 | |
Theoretical volume | MT | 23 | 25 | 30 | 35 | |
Daily Throughput capacity | MT | 2.3 | 2.5 | 3 | 3.5 | |
Material of panels | N/A | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | Two-sided stainless steel, polyurethane in the middle | |
Thickness of panels | mm | 150 | 150 | 150 | 150 | |
Storage door dimensions | m | L2500×H1800 | L2500×H1800 | L3000×H1800 | L3000×H1800 |

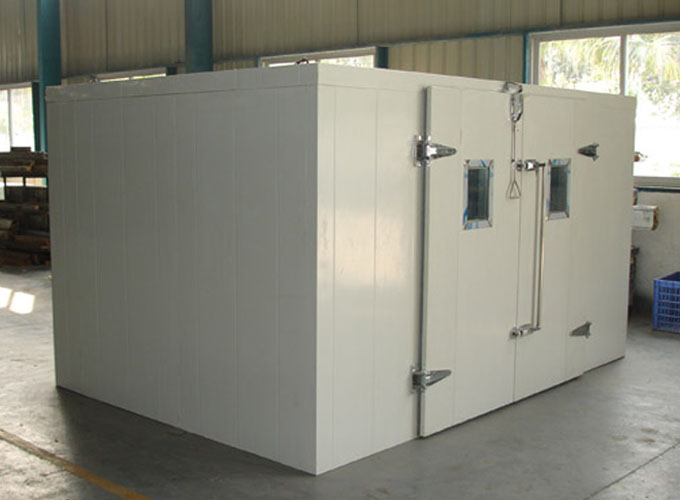

The design, configuration and other details of Focusun cold room and blast freezer can be customized according to your actual needs.
For Example:
Focusun professional technical team can provide you with the most suitable ice cooling solutions.
